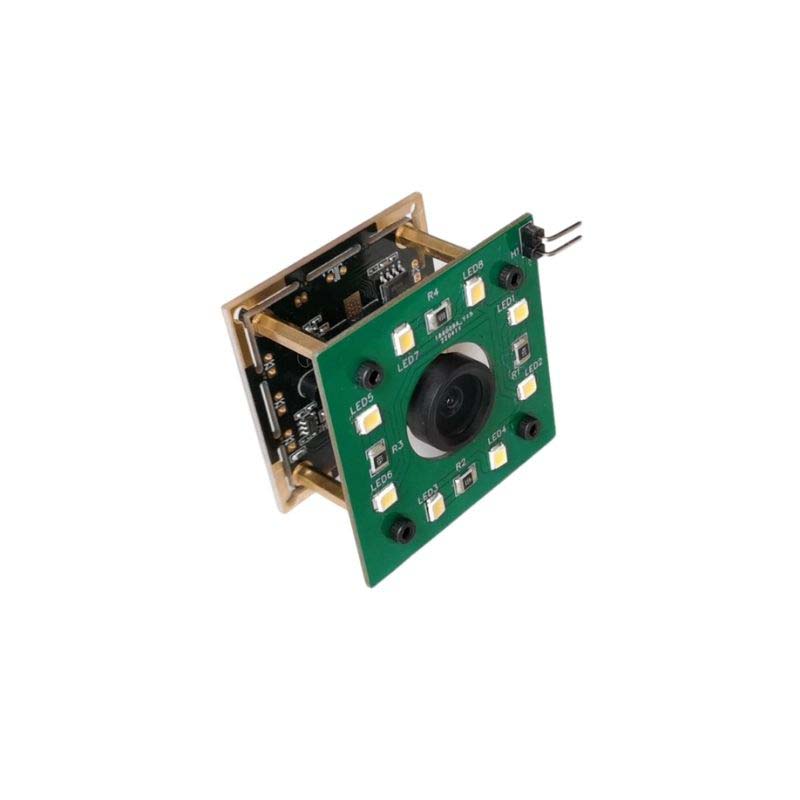

A09-Top USB camera for OpenPnP

Camera  Parameters

Light  Parameters

  1:  Rated voltage：24V

  2:  Rated current ：0.12A

  3：LED power：0.1W

  4:  LED  voltage: 3V

  5:  LED  current：30mA

The green PCB have the Reflection  of LED.

The matte black PCB has no sReflection of LED.

special note

1: The Top  camera changes its focus manually.

2: It can be used at the  top .

3: In order to improve the operation speed of the openpnp  mounter, the frame rate of this camera is fixed at 30 FPS.

Packing list

Camera  *1

USB  cable   2m
