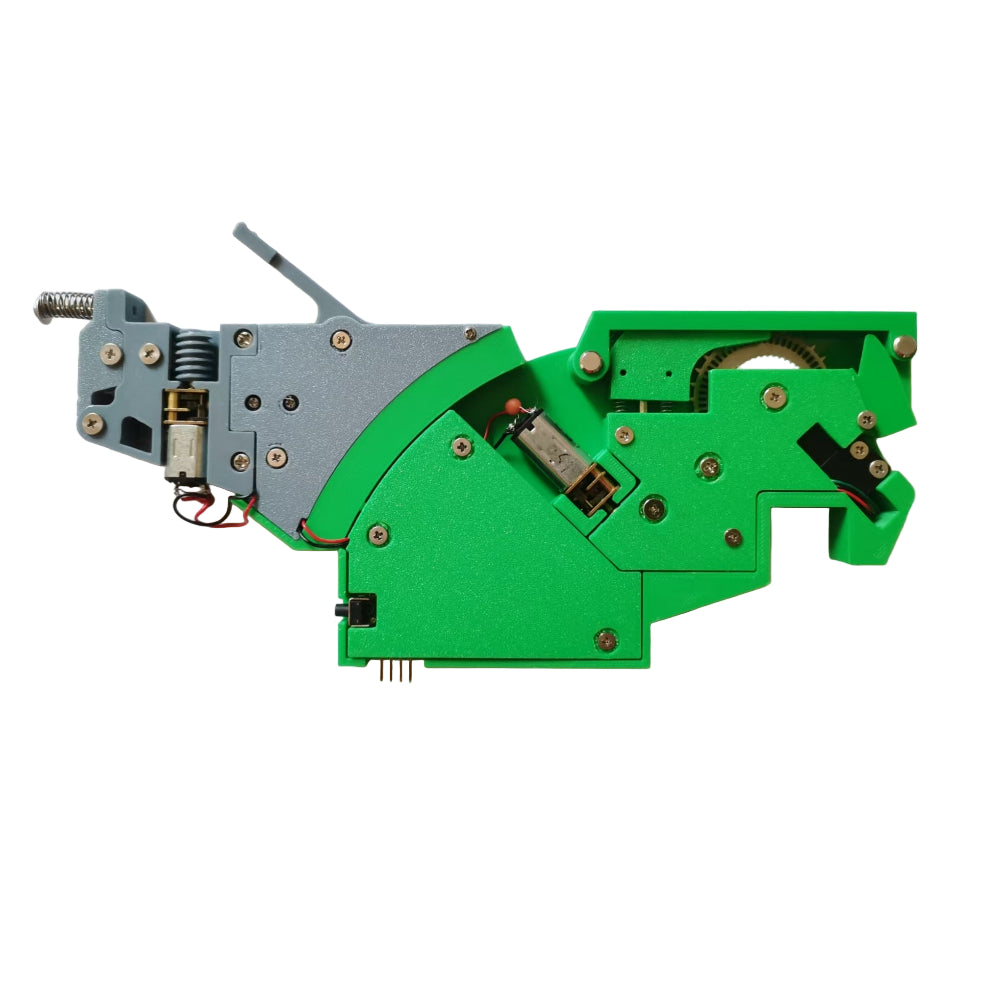

A02 Bing feeder v3

Prompt  1:      Shipping costs need to be calculated separately.

Prompt  2:     For customers in EU countries purchasing feeders separately, please visit the AliExpress link.   https://www.aliexpress.com/item/1005005312973270.html

Special note

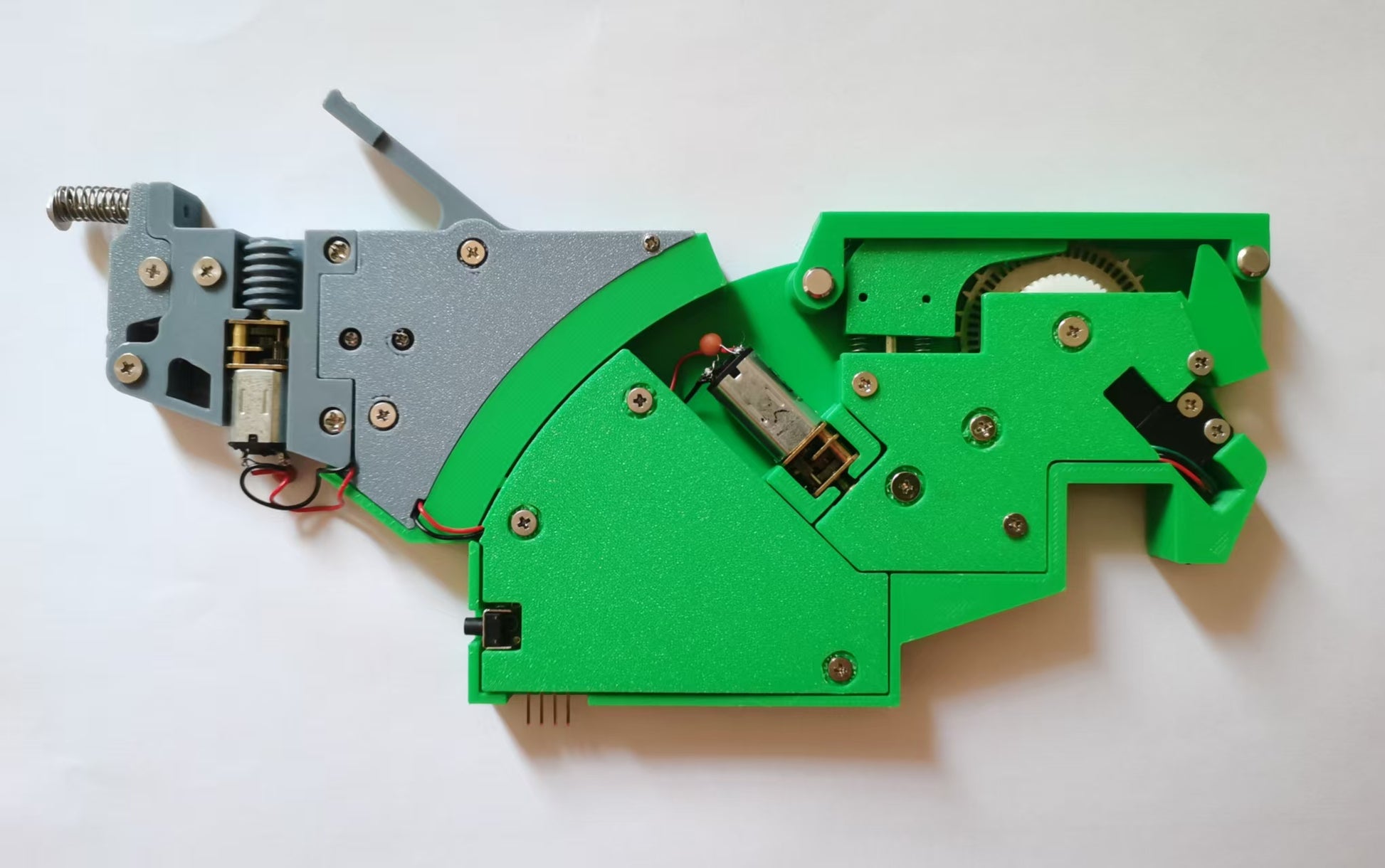

        1:This set of parts does not contain plastic parts. The plastic part is printed by yourself with a 3D printer. The figure below is only an installation diagram.

        2:The 8-2 mm and 8-4 mm feeders only have two differences.

           1. The optical encoder hole pitch of the 8-2 mm sprocket is 2 mm, while that of the 8-4 mm sprocket is 4 mm.

           2.The 8-2 mm feeder uses an 80 rpm N30 feeding motor, while the 8-4 mm feeder uses a 150 rpm N30 feeding motor.

       3: The 12 mm ,16 mm ,24 mm feeders use the same hardware and firmware, so you only need to print shells of different thicknesses.  The differences between it and the 8-4 mm feeder are.

           1. different screw lengths.

           2.  The 8-4mm feeder uses an N20 peeling motor, while the 12/16/24 mm feeders use an N30 peeling motor.

           3. Different firmware is used, and you can rewrite the firmware yourself.


         Watch the demonstrate video here:

https://youtu.be/CnlIPwArhIc

Product parameter

1: 8-2mm for 0402 package.   8-4mm for 0603,0805,1206,1210 package.

2: Each MEGA2560 control board can be connected with 48 Bing feeder.
